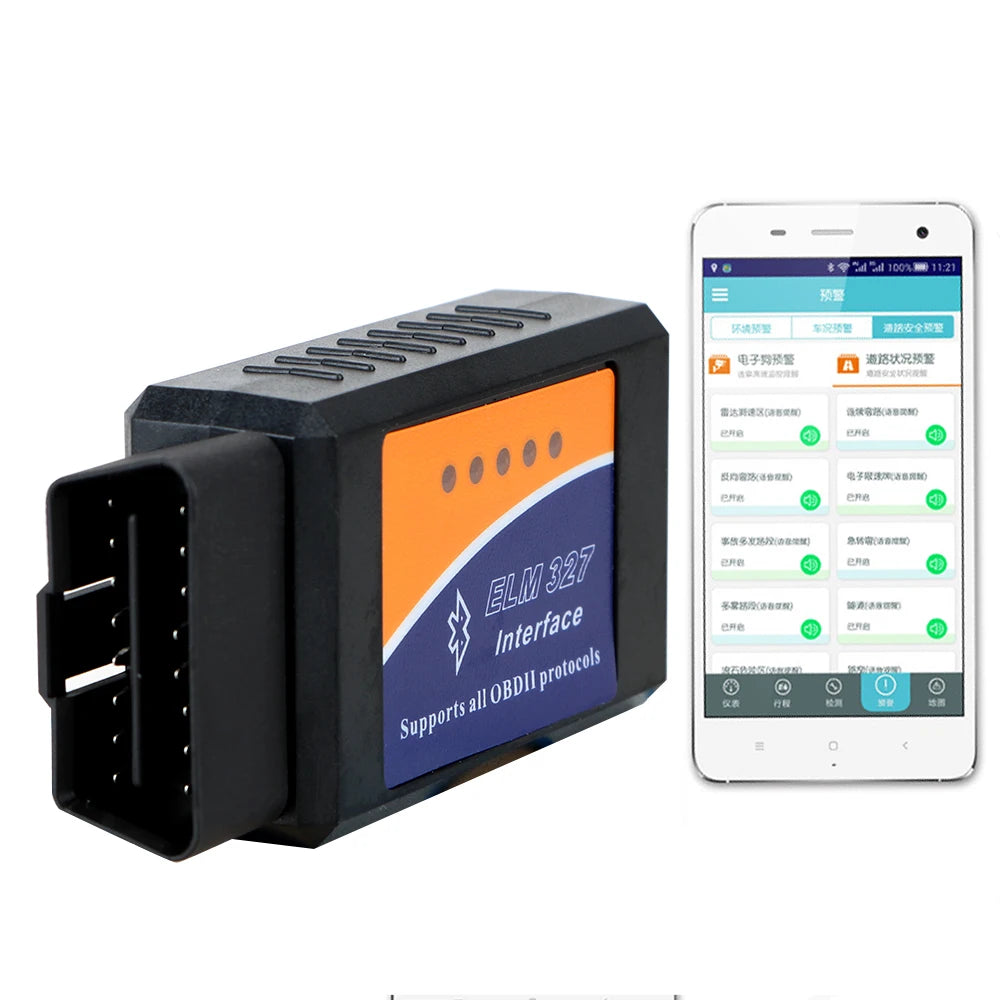

Bluetooth OBD2 Code Reader - ANDROID/WINDOWS ONLY

The ELM 327 V2.1 OBD2 Code Reader Bluetooth is a highly advanced OBDII auto diagnostic tool designed for car diagnostics. Equipped with the latest technology, this ELM327 scanner provides accurate and precise readings, making it an indispensable tool for any automotive expert.

FOR ANDROID/WINDOWS ONLY

SPECIFICATIONS

Function:

• Brand new and high quality.
• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure

Specifications:

• Product Type: Mini ELM327 V2.1 OBD2 II Bluetooth Car Auto Diagnostic Interface Scanner Tool
• Material: Automotive grade plastic
• Output Protocol: RS232 serial port
• Baud Rate: 9600 or 38400
• Working Voltage: 12V
• Working Current: 45 mA
• Operating Temperature: -40 to 100 Deg Celsius

ELM327 Bluetooth

ELM327 V2.1 OBD2 II Bluetooth Car Auto Diagnostic Interface Scanner is capable of communicating with vehicles which adopt  the following protocols:

• 1) ISO9141-2(5 baud init,10.4Kbaud)
• 2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• 3) ISO14230-4 KWP (fast init, 10.4 Kbaud)
• 4) ISO15765-4 CAN (11 bit ID, 500 Kbaud)
• 5) ISO15765-4 CAN (29 bit ID, 500 Kbaud)
• 6) ISO15765-4 CAN (11 bit ID, 250 Kbaud)
• 7) ISO15765-4 CAN (29 bit ID, 250 Kbaud)

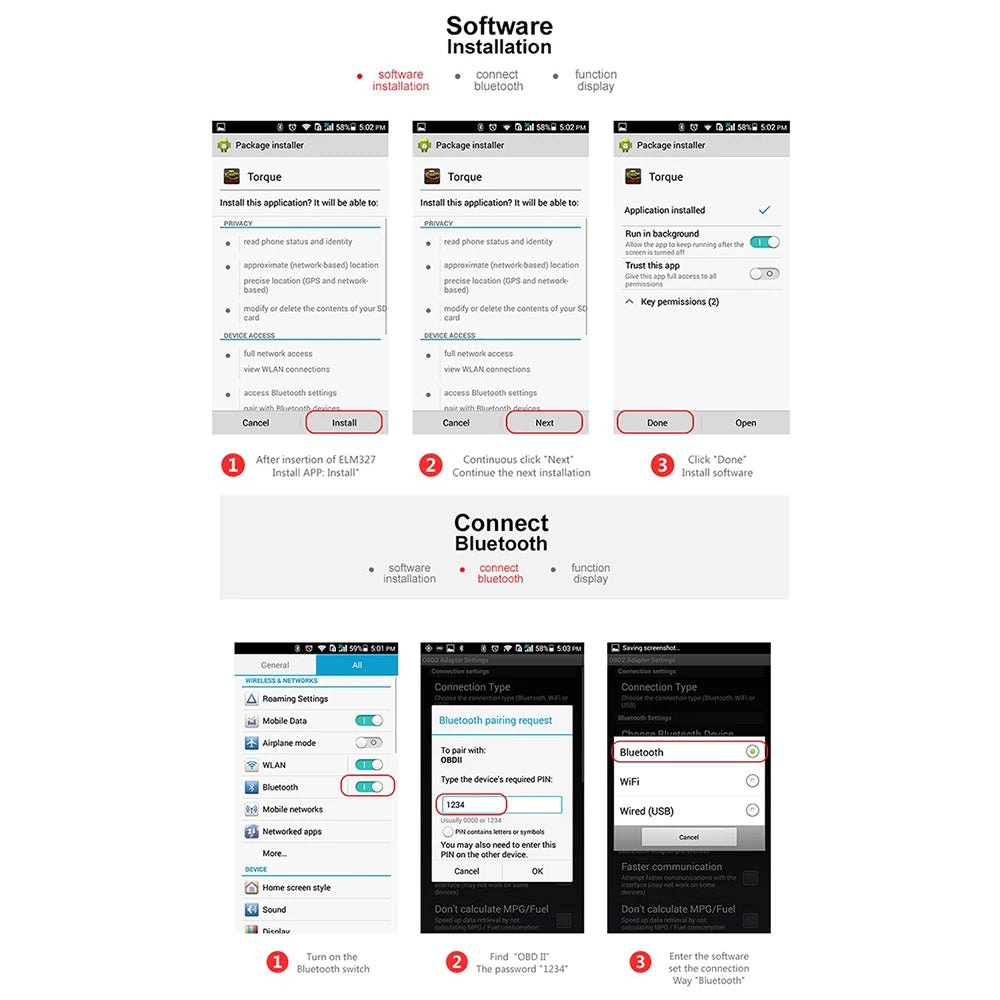

This ELM327 support TORQUE software for Android system cell phone, OBD scope software for Symbian system cell phone, PPC(Windows Mobile) system cell phone, ScanMaster-ELM for PC etc.

Project Bluetooth Password: 1234

Compatible vehicles:

• Benz2001/02/03W203 C200K (ISO); BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
• Citroen C3 2004 (ISO) ? Daihatsu YRV 2005 (ISO)
• Daihatsu YRV Turbo 2006 (ISO)
• Fiat Tipo 2002 (ISO)
• Ford New?ocus 2006(CAN)
• Honda Accord 2006 JDM (ISO); Honda Accord Euro R 2004 JDM (ISO); Honda City GD8 (ISO); Honda Civic ES 1.6A (ISO); Honda Integra Type R DC5 JDM (ISO); Honda Jazz 1.4M (ISO)
• Hyundai Getz 1.3A 2004 (ISO); Hyundai Getz 1.6M 2004 (ISO); Hyundai Matrix 2004 (ISO); Hyundai Santa Fe2.4A (ISO); Hyundai Sonata GLS (ISO); Hyundai Sonata 2005 (ISO); Hyundai Tuscani FX (ISO)
• Kia Carens 2005 (ISO); Kia Magentis 2005 (ISO); KiaRioLS (ISO); Kia Sorento SUV 2005 (ISO)
• Lexus es300 Mazda 2 (CAN)
• Mazda 5 (CAN); Mazda 6 (CAN); Mazda Premacy 2001 (ISO); Mazda RX8 (CAN)
• Mitsubishi Colt 2003 (ISO); Mitsubishi Colt Plus 2005 (ISO); Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000 ；RS/GS----1994-1996 GS all can do；Turbo Car for the year 1996-2000,only have speed and TPS，can clear the DTCS)
• Mitsubishi Lancer Evolution IX 2006 (ISO); Mitsubishi Pajero 3.5 V6 2006 (ISO)
• Nissan Sunny B14 (ISO); Nissan Sunny VIP FB15 (ISO); Nissan X-Trail 2.0L 2004 (ISO); Nissan X-Trail 2.5L 2004 (ISO)
• Peugeot 206 2001 –Only can show RPM; Peugeot 206 (ISO); Peugeot 307 (ISO); Peugeot 407 (ISO); Renault Megane II 2005 (ISO)
• Renault Kangoo 2006 (ISO)
• Subaru Impreza 1.6TS 2002 (ISO); Subaru Impreza WRX 2005 (ISO)
• Toyota Camry 2.0A 2004 (ISO); Toyota Camry 2.4A 2005 (ISO); ToyotaCorolla Altis 1.6A 2005 (ISO); ToyotaCorolla GLXi G8 1999 (ISO); ToyotaCorolla G9 2002 (ISO); ToyotaVios 2004 (ISO)

Not available vehichles:

• Mazda 323 Protege 2003 (OBD-I)
• Mitsubishi Lancer 1.6M 2006
• Nissan Sunny (N16); Nissan Cefiro (Teana) 2005; Nissan sentra 1.8 2000/2005; Nissan Cefiro (Teana) 2005
• Proton Perdana V6
• Subaru Legacy GT 2005
• Toyota camry 2002; ToyotaWish JDM (Missing Pin 5 in DLC); ToyotaIST JDM (Missing Pin 5 in DLC); Toyotaaltis 1.8 2004
• Peugeot 206 2000
• Suzuki Jimny 1.3 2000
• Diesel engine
• Hyundai Accent 2004 (ISO)

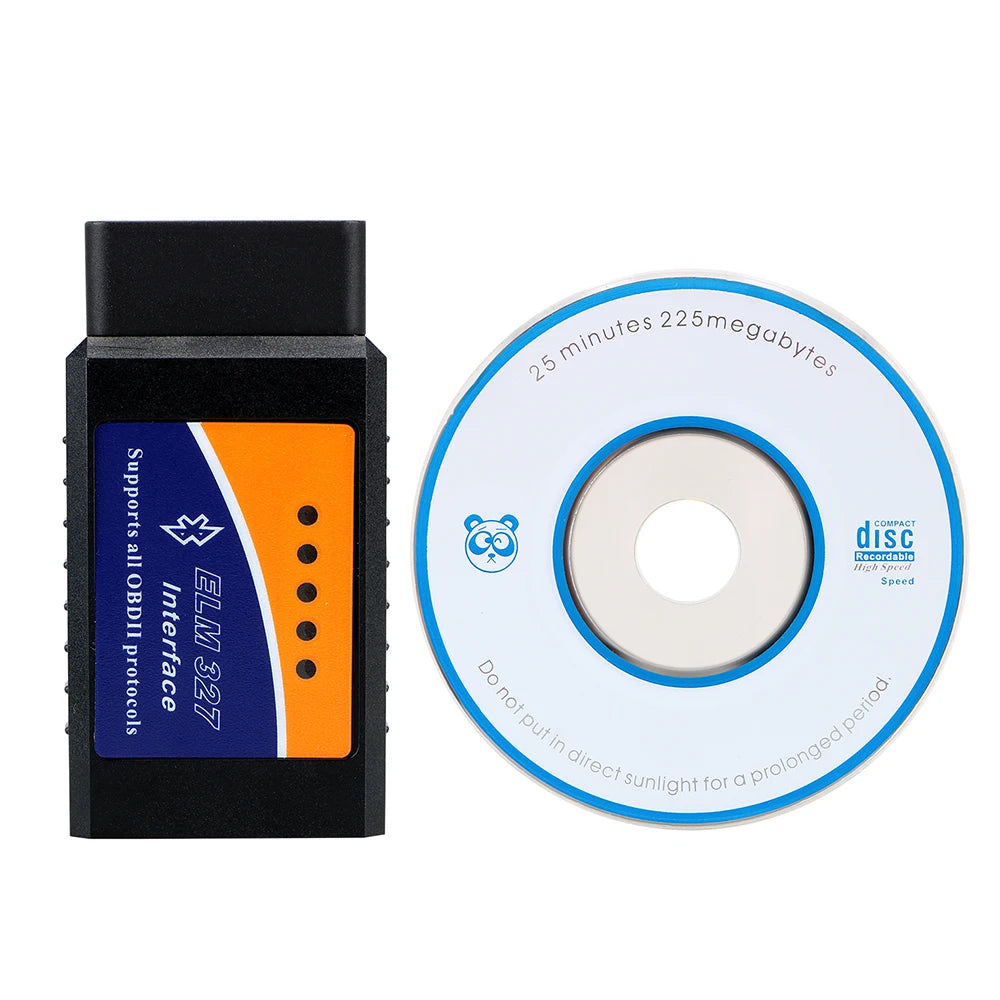

Package included:

• 1 x ELM327 V2.1 Car Diagnostic Tool
• 1 x CD
